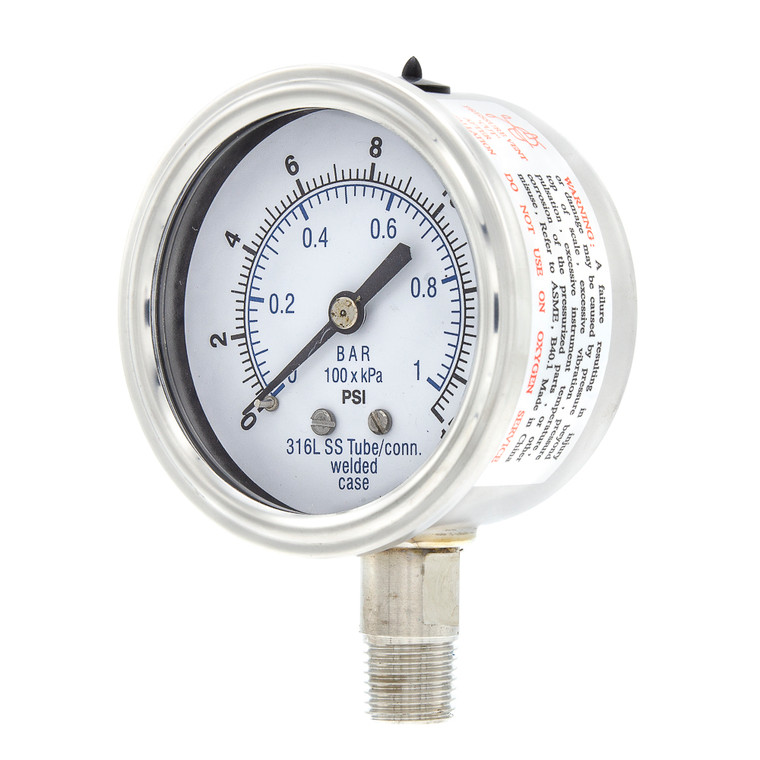

Type 301 | All Stainless, Liquid Filled or Dry - Bottom Mount

Type 301 | All Stainless, Liquid Filled or Dry - Bottom Mount

SKU:
9P301
Members Only Pricing - for Your Special Rates
Current Stock:
Sign In
Description

FEATURES:

  • STST Case, 316STST Tube & Socket
  • Lower-Mount w/ Crimped on Bezel
  • Plastic Lens


CONNECTION SIZES:

  • 1/4” Thread Size on 2-1/2” Dial Size
  • 1/4”and 1/2” Thread Size on 4” Dial Size
  • *312L (push-Twist on Bezel Available)


NOTE:

Due to the ongoing import tariffs, a 11.25% surcharge will be applied to all orders, effective 9/4/2019 until further notice.


PressuresDial Size, Dry
1/4" Thread Size
2-1/2"4"4-1/2"
A = 30/0" hg VAC9P301D-254A 9P301D-404A 9P301D-454A
CB = 30/0/15 PSI9P301D-254CB 9P301D-404CB 9P301D-454CB
CC = 30/0/30 PSI9P301D-254CC 9P301D-404CC 9P301D-454CC
CD = 30/0/60 PSI9P301D-254CD 9P301D-404CD 9P301D-454CD
CE = 30/0/100 PSI9P301D-254CE 9P301D-404CE 9P301D-454CE
CF = 30/0/150 PSI9P301D-254CF 9P301D-404CF 9P301D-454CF
CG = 30/0/200 PSI9P301D-254CG 9P301D-404CG 9P301D-454CG
CH = 30/0/300 PSI9P301D-254CH 9P301D-404CH 9P301D-454CH
B = 0/15 PSI9P301D-254B 9P301D-404B 9P301D-454B
C = 0/30 PSI9P301D-254C 9P301D-404C 9P301D-454C
D = 0/60 PSI9P301D-254D 9P301D-404D 9P301D-454D
E = 0/100 PSI9P301D-254E 9P301D-404E 9P301D-454E
F = 0/160 PSI9P301D-254F 9P301D-404F 9P301D-454F
G = 0/200 PSI9P301D-254G 9P301D-404G 9P301D-454G
H = 0/300 PSI9P301D-254H 9P301D-404H 9P301D-454H
I = 0/400 PSI9P301D-254I 9P301D-404I 9P301D-454I
J = 0/500 PSI9P301D-254J 9P301D-404J 9P301D-454J
K = 0/600 PSI9P301D-254K 9P301D-404K 9P301D-454K
L = 0/800 PSI9P301D-254L 9P301D-404L 9P301D-454L
M = 0/1000 PSI9P301D-254M 9P301D-404M 9P301D-454M
N = 0/1500 PSI9P301D-254N 9P301D-404N 9P301D-454N
O = 0/2000 PSI9P301D-254O 9P301D-404O 9P301D-454O
P = 0/3000 PSI9P301D-254P 9P301D-404P 9P301D-454P
Q = 0/4000 PSI9P301D-254Q 9P301D-404Q 9P301D-454Q
R = 0/5000 PSI9P301D-254R 9P301D-404R 9P301D-454R
S = 0/6000 PSI9P301D-254S 9P301D-404S 9P301D-454S
U = 0/10000 PSI9P301D-254U 9P301D-404U 9P301D-454U
V = 0/15000 PSI9P301D-254V 9P301D-404V 9P301D-454V
PressuresDial Size, Liquid
1/4" Thread Size
2-1/2"4"4-1/2"
A = 30/0" hg VAC9P301L-254A 9P301L-404A 9P301L-454A
CB = 30/0/15 PSI9P301L-254CB 9P301L-404CB 9P301L-454CB
CC = 30/0/30 PSI9P301L-254CC 9P301L-404CC 9P301L-454CC
CD = 30/0/60 PSI9P301L-254CD 9P301L-404CD 9P301L-454CD
CE = 30/0/100 PSI9P301L-254CE 9P301L-404CE 9P301L-454CE
CF = 30/0/150 PSI9P301L-254CF 9P301L-404CF 9P301L-454CF
CG = 30/0/200 PSI9P301L-254CG 9P301L-404CG 9P301L-454CG
CH = 30/0/300 PSI9P301L-254CH 9P301L-404CH 9P301L-454CH
B = 0/15 PSI9P301L-254B 9P301L-404B 9P301L-454B
C = 0/30 PSI9P301L-254C 9P301L-404C 9P301L-454C
D = 0/60 PSI9P301L-254D 9P301L-404D 9P301L-454D
E = 0/100 PSI9P301L-254E 9P301L-404E 9P301L-454E
F = 0/160 PSI9P301L-254F 9P301L-404F 9P301L-454F
G = 0/200 PSI9P301L-254G 9P301L-404G 9P301L-454G
H = 0/300 PSI9P301L-254H 9P301L-404H 9P301L-454H
I = 0/400 PSI9P301L-254I 9P301L-404I 9P301L-454I
J = 0/500 PSI9P301L-254J 9P301L-404J 9P301L-454J
K = 0/600 PSI9P301L-254K 9P301L-404K 9P301L-454K
L = 0/800 PSI9P301L-254L 9P301L-404L 9P301L-454L
M = 0/1000 PSI9P301L-254M 9P301L-404M 9P301L-454M
N = 0/1500 PSI9P301L-254N 9P301L-404N 9P301L-454N
O = 0/2000 PSI9P301L-254O 9P301L-404O 9P301L-454O
P = 0/3000 PSI9P301L-254P 9P301L-404P 9P301L-454P
Q = 0/4000 PSI9P301L-254Q 9P301L-404Q 9P301L-454Q
R = 0/5000 PSI9P301L-254R 9P301L-404R 9P301L-454R
S = 0/6000 PSI9P301L-254S 9P301L-404S 9P301L-454S
U = 0/10000 PSI9P301L-254U 9P301L-404U 9P301L-454U
V = 0/15000 PSI9P301L-254V 9P301L-404V 9P301L-454V
